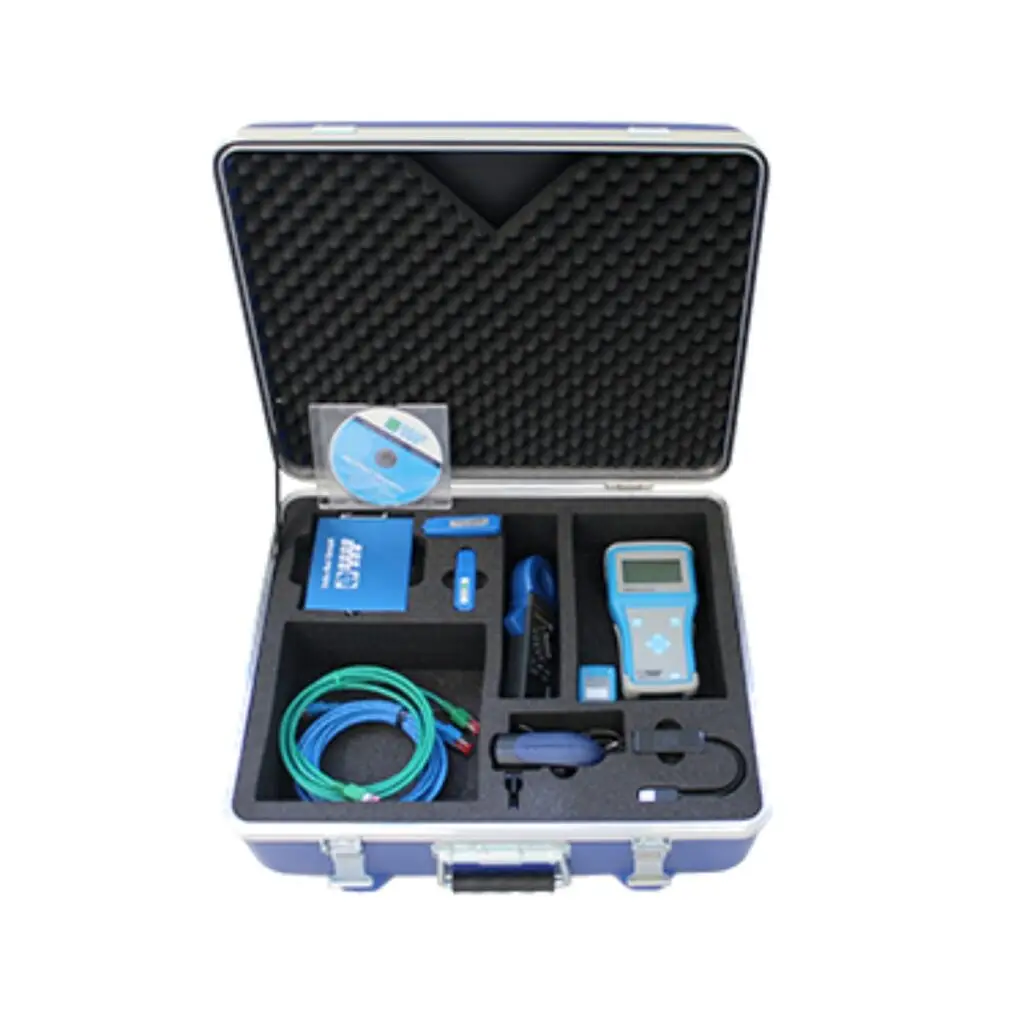

PROscan® Active V2
Network topology and diagnostic software for quickly mapping, documenting and analysing PROFINET and Industrial Ethernet networks.
Product Overview
PROscan® Active V2 is a network topology and diagnostic software solution designed to quickly map, document and analyse PROFINET and Industrial Ethernet networks. It provides a detailed view of the actual network structure, including connected devices, device information, port status and network connections.
The software can detect the real network topology and display important device information such as IP and MAC addresses, device names and types, order numbers and hardware and software versions. It also provides port statistics and network diagnostics to support commissioning, maintenance and troubleshooting.
PROscan® Active V2 includes a comparison scan function that highlights changes between network scans, helping users identify changes to hardware and software versions, port statistics and network structure. When used together with the PROFINET-INspektor® NT, the software can also display the current status of network devices directly within the topology using graphical status indicators.
The software supports the creation of acceptance documentation and allows scanned topologies to be edited, saved and printed, making it suitable for network commissioning, documentation and ongoing maintenance.
Key Features
• Automatic detection of the actual network topology
• Supports PROFINET and Industrial Ethernet networks
• Displays device names, types and network information
• Displays IP and MAC addresses
• Displays hardware and software versions
• Displays device order numbers
• Provides port and connection information
• Displays port errors and discarded telegrams
• Provides network diagnostic and statistics modes
• Comparison scan highlights changes between network scans
• Compares hardware and software versions
• Calculates and displays network load for connections
• Supports multiple network topologies
• Creates acceptance reports and checklists
• Acceptance reports can include the company’s own logo
• Topology plans can be edited and printed
• Supports export and storage of topology information
• Optimised for touch-panel operation
• Can work together with the PROFINET-INspektor® NT
• Graphically displays device status when used with the PROFINET-INspektor® NT
Technical Specifications
Product Type: Network topology and diagnostic software
Supported Networks: PROFINET and Industrial Ethernet
Topology Detection: Automatic detection of the actual network structure
Device Information: PROFINET name, IP address, MAC address, device type/name, order number, hardware version and software version
Port Information: Port assignment, port operating mode, port speed, errors and discarded telegrams
Network Analysis: Port statistics, network load calculation and diagnostic mode
Comparison Function: Comparison of network topology, hardware/software versions and port statistics
Acceptance Documentation: Acceptance report and checklist with company logo
Topology Management: Multiple topologies can be opened and managed
Data Handling: Topology data can be saved and exported
PROFINET-INspektor® NT Integration: Network quality parameters can be assigned to devices and displayed within the topology
Licensing: Basic licence, 5-licence and 25-licence options; further licences available on request
Basic Licence Article Number: 117000053
5-Licence Article Number: 117000057
25-Licence Article Number: 117000061
V1 to V2 Upgrade Article Number: 117000052
Current Software Release: Version 2.4.3.403
