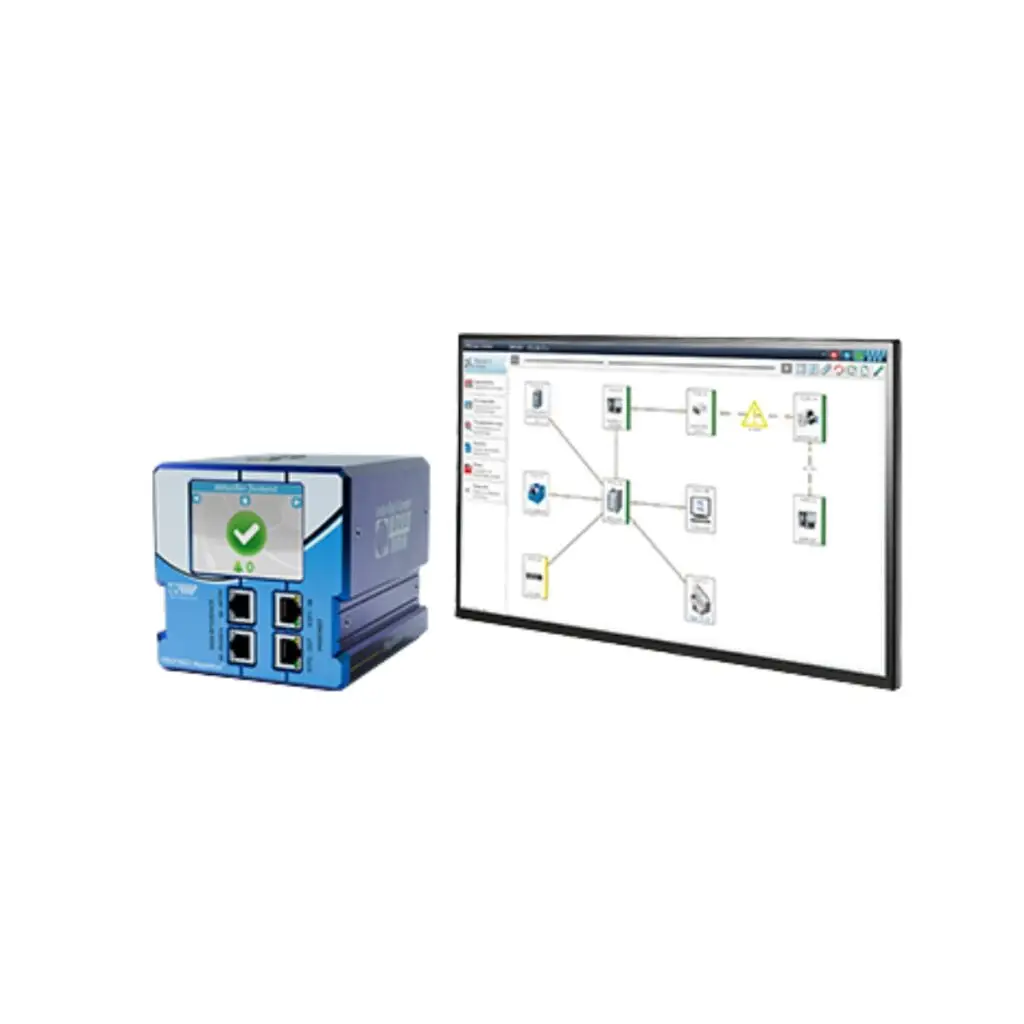

PROmanage® NT V2
Centralised industrial network monitoring software for evaluating network condition data, detecting abnormalities and supporting preventative maintenance across multiple industrial network protocols.
Product Overview
PROmanage® NT V2 is a central network monitoring software solution for industrial networks and fieldbuses. It collects, evaluates and stores network condition data in a central location, helping users identify abnormalities at an early stage and respond to developing network problems before they result in avoidable downtime.
The software can monitor Industrial Ethernet, PROFINET, PROFIBUS, EtherNet/IP, CANbus and ASi networks, depending on the connected monitoring hardware. It can operate using existing managed industrial switches or be combined with Indu-Sol diagnostic devices such as the PROFINET-INspektor® NT and other INspektor® units.
PROmanage® NT V2 provides centralised condition monitoring, event and alarm management, historical data analysis and topology information. Thresholds can be configured for monitored parameters, with events recorded with timestamps and notifications forwarded through supported communication channels. The software can be scaled according to the number of network ports or devices being monitored.
Key Features
• Centralised monitoring of industrial networks and fieldbuses
• Supports Industrial Ethernet, PROFINET, PROFIBUS, EtherNet/IP, CANbus and ASi
• Collects and evaluates network condition data
• Early detection of network abnormalities
• Historical storage and analysis of network condition data
• Configurable threshold values for monitored parameters
• Automatic event recording with timestamps
• Alarm management and notifications
• Centralised network topology and device status overview
• Can integrate data from Indu-Sol INspektor® diagnostic devices
• Can integrate data from managed industrial Ethernet switches
• Supports PROmesh switch diagnostic data
• Scalable licensing based on monitored network ports
• Can be expanded as monitoring requirements grow
• User interface can be customised for different monitoring requirements
Technical Specifications
Product Type: Industrial network monitoring software
Current Version: PROmanage® NT V2
Supported Network Protocols: Industrial Ethernet, PROFINET, PROFIBUS, EtherNet/IP, CANbus and ASi
Monitoring Data: Network errors, discards, network load, transmission speed, device failures/restarts, telegram gaps, jitter, device temperature and other protocol-specific parameters
Data Storage: Long-term storage of network condition and event data
Event Management: Timestamped event recording with configurable threshold values
Alarm Notifications: Email, messaging services, OPC and SNMP
Topology Monitoring: Central recording and display of network topology and device status
Compatible Monitoring Hardware: Managed industrial Ethernet switches, PROFINET-INspektor® NT and other compatible INspektor® units
Licensing Model: Device-based workstation licence with scalable port licensing
Available Licence Sizes: 40 Ports, 160 Ports, 480 Ports, 960 Ports and 2,000 Ports
40-Port Licence Article Number: 117000103
160-Port Licence Article Number: 117000105
480-Port Licence Article Number: 117000107
960-Port Licence Article Number: 117000110
2,000-Port Licence Article Number: 117000116
PROmanage® NT to V2 Upgrade: 117000100
OPC Server Interface: 112010006
Minimum Server CPU: 2 CPU cores
Minimum Server RAM: 4 GB
Minimum Free Hard Disk Space: 50 GB
