PB-Q ONE
Compact PROFIBUS measuring and diagnostic tool for fast evaluation of physical and logical network quality, topology and communication performance.
Product Overview

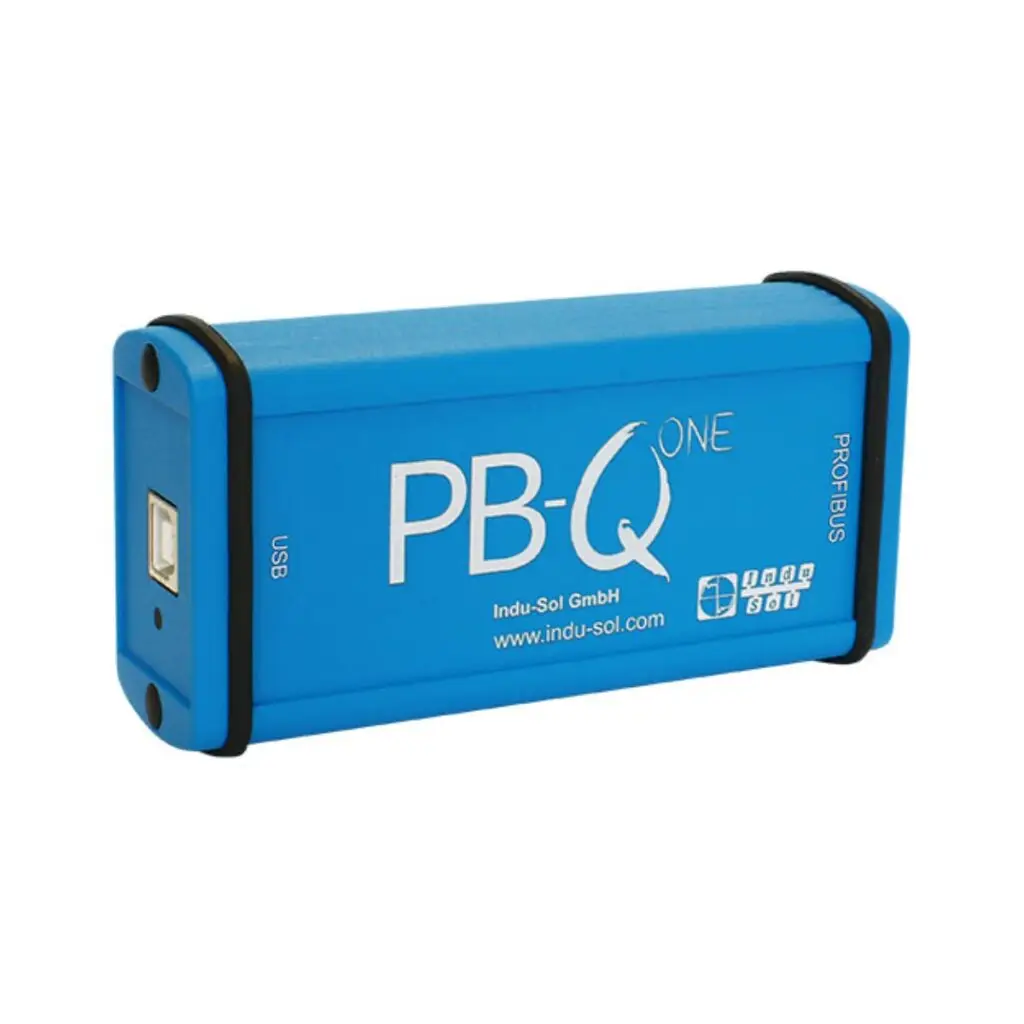

The PB-Q ONE is a compact PROFIBUS measuring and diagnostic tool designed for commissioning, acceptance testing, maintenance, service and troubleshooting of PROFIBUS networks. It evaluates both the physical transmission quality and logical communication of PROFIBUS systems, providing clear measurement results that can be assessed quickly using its graphical traffic-light display.
The PB-Q ONE can perform fully automatic, non-reactive topology detection while the PROFIBUS network remains in operation. It can identify connected bus devices, repeaters, measuring points and cable lengths between network devices, providing a clear representation of the actual network structure.
The integrated telegram mode provides additional analysis capabilities, while the master simulator allows the communication quality of connected bus devices to be analysed independently of the PLC. With an optional PROFIBUS PA adapter, the PB-Q ONE can also be used for PROFIBUS PA networks.
Key Features
• Complete evaluation of PROFIBUS communication quality
• Physical and logical analysis of PROFIBUS networks
• Fully automatic, non-reactive topology detection during operation
• Identifies connected bus devices and network structure
• Detects repeaters and measuring points
• Identifies cable lengths between network devices
• Provides measurement results within seconds
• Traffic-light evaluation for quick network condition assessment
• Integrated telegram monitor with filters and triggers
• Integrated master simulator for offline communication analysis
• Device information displayed in a structured device tree
• Signal-quality evaluation for connected PROFIBUS devices
• Suitable for commissioning and acceptance testing
• Suitable for maintenance and service
• Supports troubleshooting and fault isolation
• Compatible with PROFIBUS DP
• Supports PROFIBUS PA when used with the optional PA adapter
Technical Specifications
Product Type: PROFIBUS measuring and diagnostic tool
Supported Network: PROFIBUS DP
PROFIBUS PA: Supported with optional PROFIBUS PA adapter
PROFIBUS Interface: 9-pole D-SUB connector
USB Interface: USB 2.0
Transmission Rate: 9.6 kbit/s to 12 Mbit/s
Power Supply: Approximately 500 mA via USB
Topology Detection: Fully automatic, non-reactive topology detection during network operation
Topology Information: Bus devices, repeaters, measuring points and cable lengths
Physical Analysis: Signal quality, differential voltage, rising edges and transient response
Logical Analysis: PROFIBUS telegram traffic and communication quality
Telegram Analysis: Integrated filters and trigger functions
Master Simulator: Integrated master simulator for offline network analysis
Dimensions (H × W × D): 60 × 117 × 35 mm
Protection Class: IP20
Operating Temperature: 0 °C to +50 °C
Storage Temperature: -20 °C to +70 °C
Conformity: CE
Article Number: 110010050
