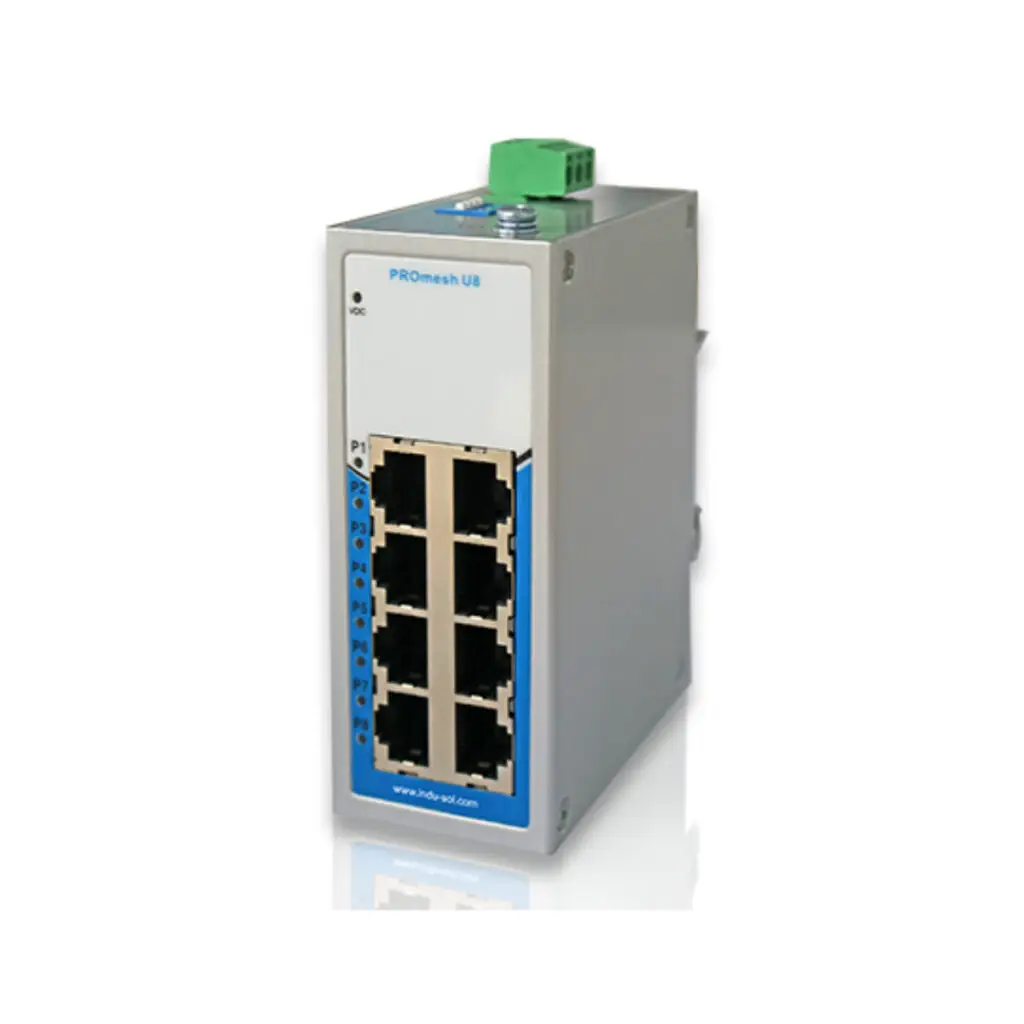

PROmesh U8
Compact unmanaged industrial Ethernet switch with eight 100 Mbit/s RJ45 ports for reliable PROFINET and Industrial Ethernet network connections.
Product Overview
The PROmesh U8 is an unmanaged industrial Ethernet switch with eight 100 Mbit/s RJ45 ports, designed for reliable data communication in PROFINET and Industrial Ethernet networks.
Its compact design, robust metal housing and passive cooling make it suitable for installation in industrial control cabinets and automation environments. The switch supports PROFINET Conformance Class A and PROFINET prioritisation, while additional functions such as One-Key VLAN, Flow Control, Loop Detection and Storm Suppression can be activated through integrated DIP switches.
The PROmesh U8 provides a straightforward plug-and-play networking solution for industrial applications where simple installation, reliable data transmission and cost-effective network infrastructure are required.
Key Features
- 8 × 100 Mbit/s RJ45 ports
- Unmanaged plug-and-play operation
- Designed for PROFINET and Industrial Ethernet networks
- PROFINET Conformance Class A
- PROFINET prioritisation
- One-Key VLAN function via DIP switch
- Flow Control via DIP switch
- Loop Detection via DIP switch
- Storm Suppression via DIP switch
- Store-and-forward switching technology
- 1.6 Gbit/s backplane capacity
- 1.19 Mpps throughput
- 1 Mbit shared packet buffer
- Compact metal housing
- Passive cooling
- DIN-rail mounting
- Suitable for bus, star and ring network structures
- Link and data communication status LEDs
- Operating temperature range of -40 °C to +75 °C
- CE and UKCA certified
Technical Specifications
Product Type: Unmanaged industrial Ethernet switch
Application: PROFINET and Industrial Ethernet networks
RJ45 Ports: 8 × 10/100 Mbit/s
PROFINET: Conformance Class A according to V2.4
Switching Technology: Store and Forward
Backplane Capacity: 1.6 Gbit/s
Throughput: 1.19 Mpps
Shared Packet Buffer: 1 Mbit
Functions: Loop Detection, Storm Suppression, One-Key VLAN and Flow Control
Status LEDs: Power, link and data communication
Power Supply: 24 V DC
Mounting: 35 mm DIN rail
Protection Rating: IP40
Housing: Metal, passive cooling
Dimensions: 103 × 41 × 78 mm (H × W × D)
Operating Temperature: -40 °C to +75 °C
Storage Temperature: -40 °C to +85 °C
Relative Humidity: <95%, non-condensing
Certifications: CE, UKCA
Article Number: 114110122
