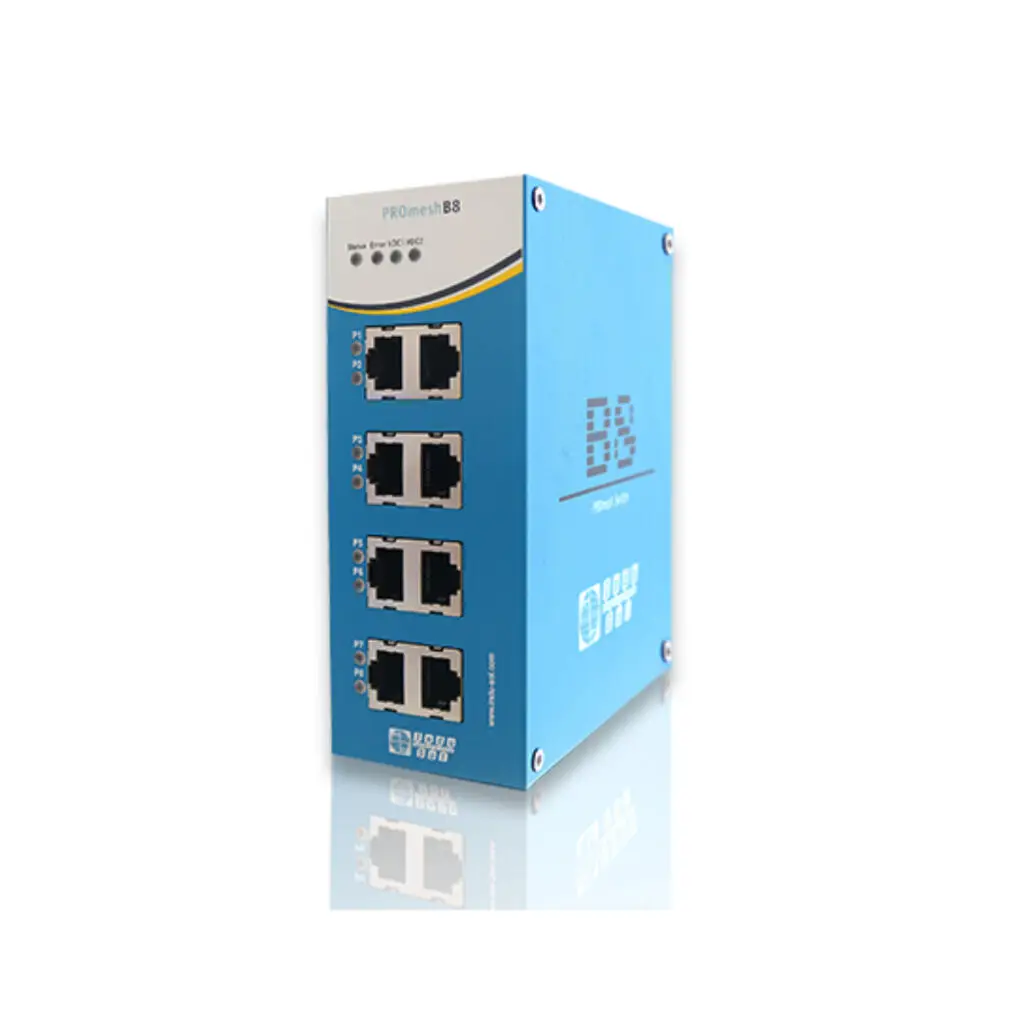

PROmesh B8
Managed industrial Ethernet switch with eight 100 Mbit/s RJ45 ports, integrated diagnostics and PROFINET and EtherNet/IP support.
Product Overview
The PROmesh B8 is a managed industrial Ethernet switch designed for reliable and high-performance communication in PROFINET and EtherNet/IP networks. With eight 100 Mbit/s RJ45 ports and a 6.3 Gbit/s backplane capacity, it provides flexible network connectivity for industrial automation applications.
The switch combines managed network functionality with integrated diagnostic features, allowing network parameters such as 24 V supply, temperature, port statistics and network load to be monitored. Redundancy functions including MRP and RSTP support network availability, while the integrated web interface provides convenient configuration and monitoring.
The compact metal housing and DIN-rail mounting make the PROmesh B8 suitable for installation in industrial control cabinets. Support for PROFINET and EtherNet/IP engineering files also simplifies integration into existing automation systems.
Key Features
- 8 × 100 Mbit/s RJ45 ports
- Managed industrial Ethernet switch
- Designed for PROFINET and EtherNet/IP networks
- PROFINET Conformance Class B
- Netload Class III
- Integrated network diagnostics
- Monitoring of 24 V supply
- Temperature monitoring
- Port statistics monitoring
- Network load monitoring
- MRP and RSTP redundancy functions
- Integrated firewall functionality
- Routing functionality
- Web-based configuration and management
- EDS support for EtherNet/IP integration
- GSDML support for PROFINET integration
- E-Plan and STEP engineering data support
- Compact metal housing
- DIN-rail mounting
- Suitable for industrial control cabinets
- UL, CSA, CE and UKCA certifications
Technical Specifications
Product Type: Managed industrial Ethernet switch
Application: PROFINET and EtherNet/IP networks
RJ45 Ports: 8 × 100 Mbit/s
PROFINET Standard: Conformance Class B according to V2.4
Netload Class: III
Backplane Capacity: 6.3 Gbit/s
Throughput: 1.6 Mpps
Shared Buffer: 2 Mbit
Monitoring: 24 V, temperature, port statistics and network load
Redundancy: MRP, RSTP
Firewall: Yes
Routing: Yes
Configuration: Web interface
Protection Rating: IP20
Mounting: DIN rail
Housing: Metal
Certifications: UL, CSA, CE, UKCA
Article Number: 114110501
