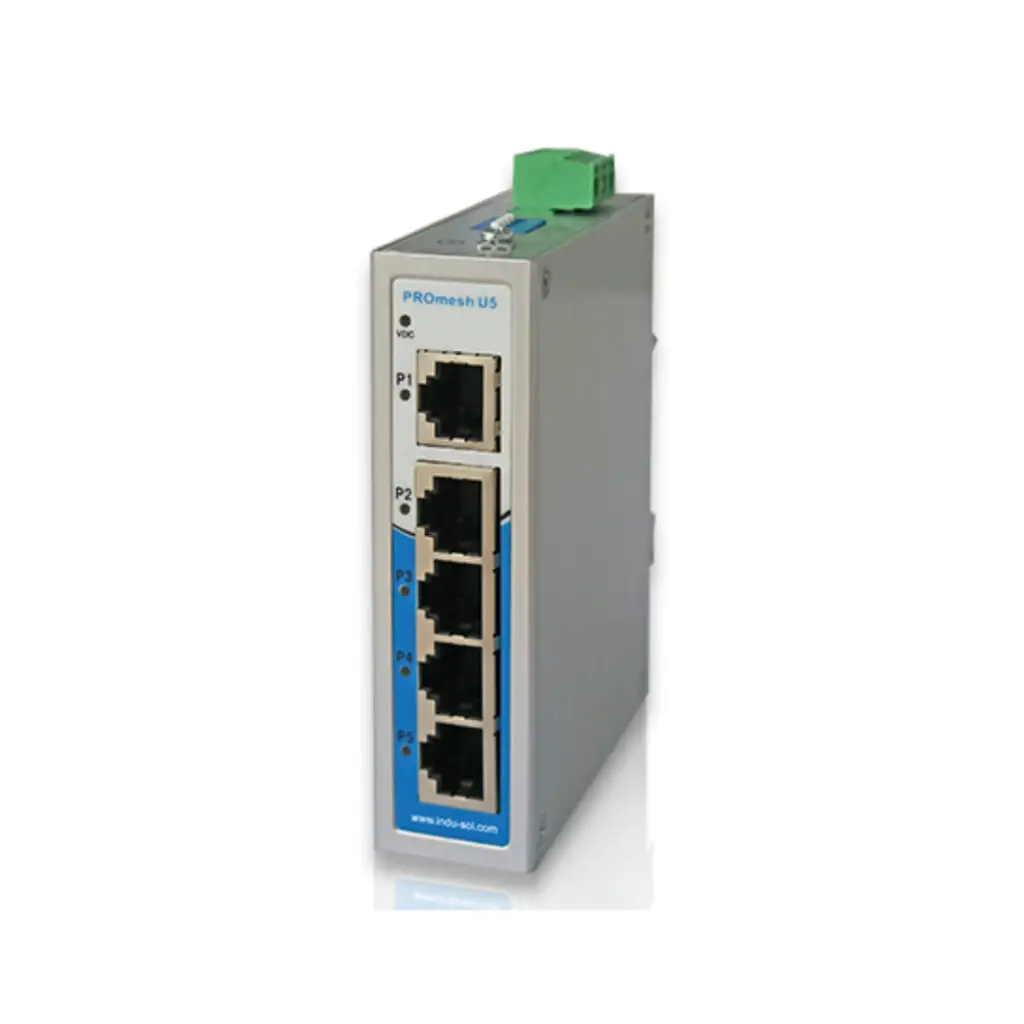

PROmesh U5
Compact unmanaged industrial Ethernet switch with five 100 Mbit/s RJ45 ports for reliable PROFINET and Industrial Ethernet network connections.
Product Overview
The PROmesh U5 is an unmanaged industrial Ethernet switch with five 100 Mbit/s RJ45 ports, designed for reliable data communication in smaller to medium-sized PROFINET and Industrial Ethernet networks.
Its compact metal housing, passive cooling and DIN-rail mounting make it well suited to industrial control cabinets and automation environments. The switch supports PROFINET Conformance Class A and PROFINET prioritisation, while additional functions such as One-Key VLAN and Flow Control can be activated using the integrated DIP switches.
The PROmesh U5 provides a straightforward plug-and-play solution for bus, star and ring network structures where managed-switch functionality is not required. Its robust construction and extended operating temperature range support reliable operation in demanding industrial environments.
Key Features
- 5 × 100 Mbit/s RJ45 ports
- Unmanaged plug-and-play operation
- Designed for PROFINET and Industrial Ethernet networks
- PROFINET Conformance Class A
- PROFINET prioritisation
- One-Key VLAN function via DIP switch
- Flow Control function via DIP switch
- Loop detection
- Storm suppression
- Store-and-forward switching technology
- 1 Gbit/s backplane capacity
- Compact metal housing
- Passive cooling
- DIN-rail mounting
- Suitable for bus, star and ring network structures
- Link and data communication status LEDs
- Operating temperature range of -40 °C to +75 °C
- Suitable for industrial automation and control cabinet applications
- CE and UKCA certified
Technical Specifications
Product Type: Unmanaged industrial Ethernet switch
Application: PROFINET and Industrial Ethernet networks
RJ45 Ports: 5 × 10/100 Mbit/s
PROFINET: Conformance Class A, V2.4
Switching Technology: Store and Forward
Backplane Capacity: 1 Gbit/s
Throughput: 0.74 Mpps
MAC Address Table: 2K
Packet Memory: 1 Mbit
Functions: Loop detection, storm suppression, One-Key VLAN and Flow Control
Status LEDs: Power, link and data communication
Power Supply: 24 V DC nominal
Supply Voltage Range: 12–48 V DC
Maximum Power Consumption: 1 W
Mounting: 35 mm DIN rail
Protection Rating: IP40
Housing: Metal, passive cooling
Dimensions: 103 × 28 × 78 mm (H × W × D)
Operating Temperature: -40 °C to +75 °C
Storage Temperature: -40 °C to +85 °C
Relative Humidity: <95%, non-condensing
Certifications: CE, UKCA
Article Number: 114110120
