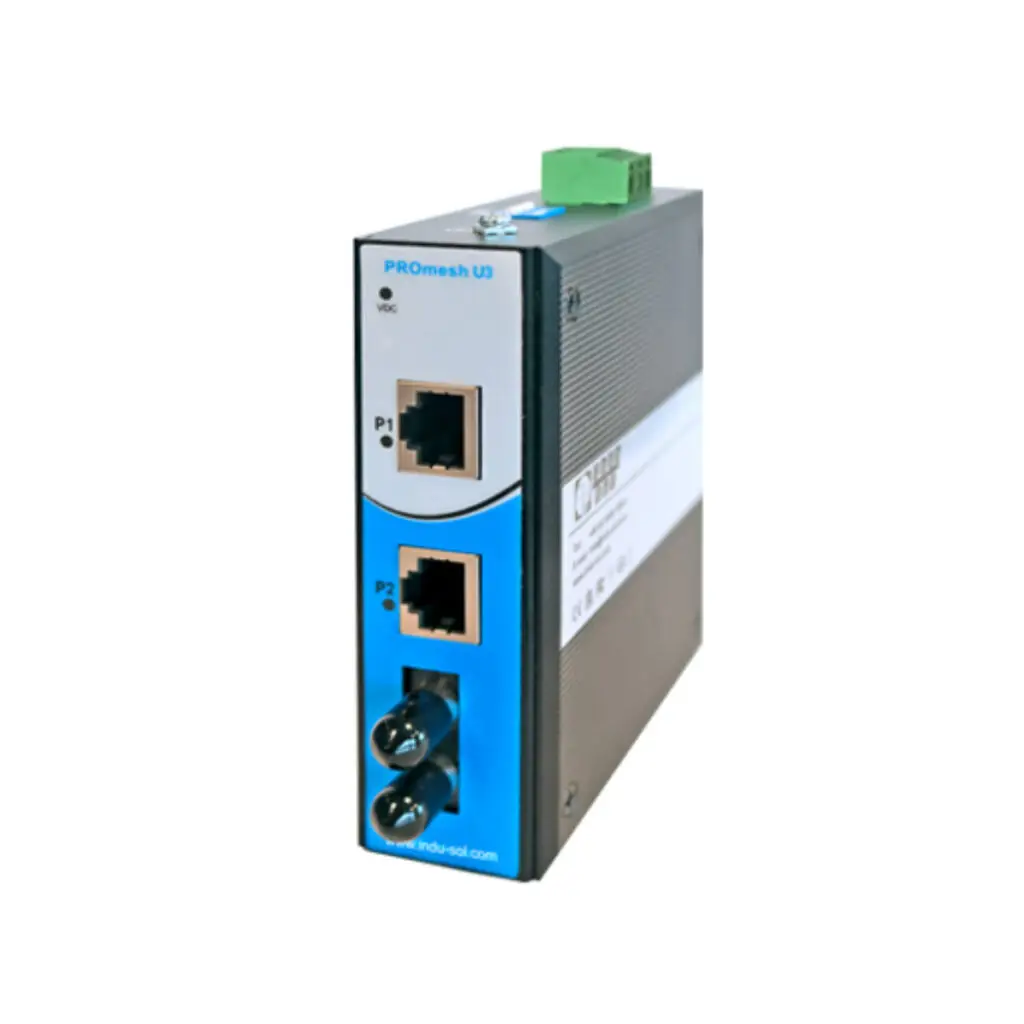

PROmesh U3
Compact unmanaged industrial Ethernet switch with two RJ45 ports and one multimode fibre-optic port for reliable PROFINET and Industrial Ethernet connections.
Product Overview
The PROmesh U3 is a compact, unmanaged industrial Ethernet switch designed for reliable PROFINET and Industrial Ethernet connections in industrial automation environments. With two 100 Mbit/s RJ45 ports and one 100 Mbit/s multimode fibre-optic port, it provides a practical solution for connecting copper and fibre-based network segments.
The PROmesh U3 uses a robust metal housing and passive cooling, making it suitable for demanding industrial environments. Its compact design allows flexible installation on a 35 mm DIN rail, while integrated functions such as PROFINET prioritisation, VLAN and network protection features support reliable network communication.
The switch is designed as a plug-and-play solution and is particularly suitable for smaller and less complex industrial network structures where managed switch functionality is not required.
Key Features
- Unmanaged plug-and-play industrial Ethernet switch
- 2 × 100 Mbit/s RJ45 ports
- 1 × 100 Mbit/s multimode fibre-optic port
- Supports PROFINET Conformance Class A
- Suitable for PROFINET and Industrial Ethernet networks
- Supports copper and fibre-optic network connections
- Compact metal housing
- Passive cooling
- PROFINET prioritisation
- VLAN functionality
- Loop detection
- Storm suppression
- Flow control
- Store-and-forward switching technology
- Link and data communication status LEDs
- Robust design for industrial environments
- DIN-rail mounting
- Operating temperature range of -40 °C to +75 °C
- Suitable for bus, star and ring network structures
Technical Specifications
Product Type: Unmanaged industrial Ethernet switch
Application: PROFINET and Industrial Ethernet networks
RJ45 Ports: 2 × 10/100 Mbit/s
Fibre Port: 1 × 100 Mbit/s multimode fibre-optic port
Fibre Interface: Multimode fibre
PROFINET: Conformance Class A
Switching Technology: Store and Forward
Backplane Capacity: 1 Gbit/s
Throughput: 0.74 Mpps
MAC Address Table: 2K
Packet Memory: 1 Mbit
Functions: Loop detection, storm suppression, VLAN and flow control
Status LEDs: Power, link and data communication
Power Supply: 24 V DC nominal
Supply Voltage Range: 12–48 V DC
Mounting: 35 mm DIN rail
Protection Rating: IP40
Operating Temperature: -40 °C to +75 °C
Storage Temperature: -40 °C to +85 °C
Relative Humidity: <95%, non-condensing
Housing: Metal, passive cooling
Dimensions: 110 × 35 × 95 mm (H × W × D)
Article Number: 114110130
