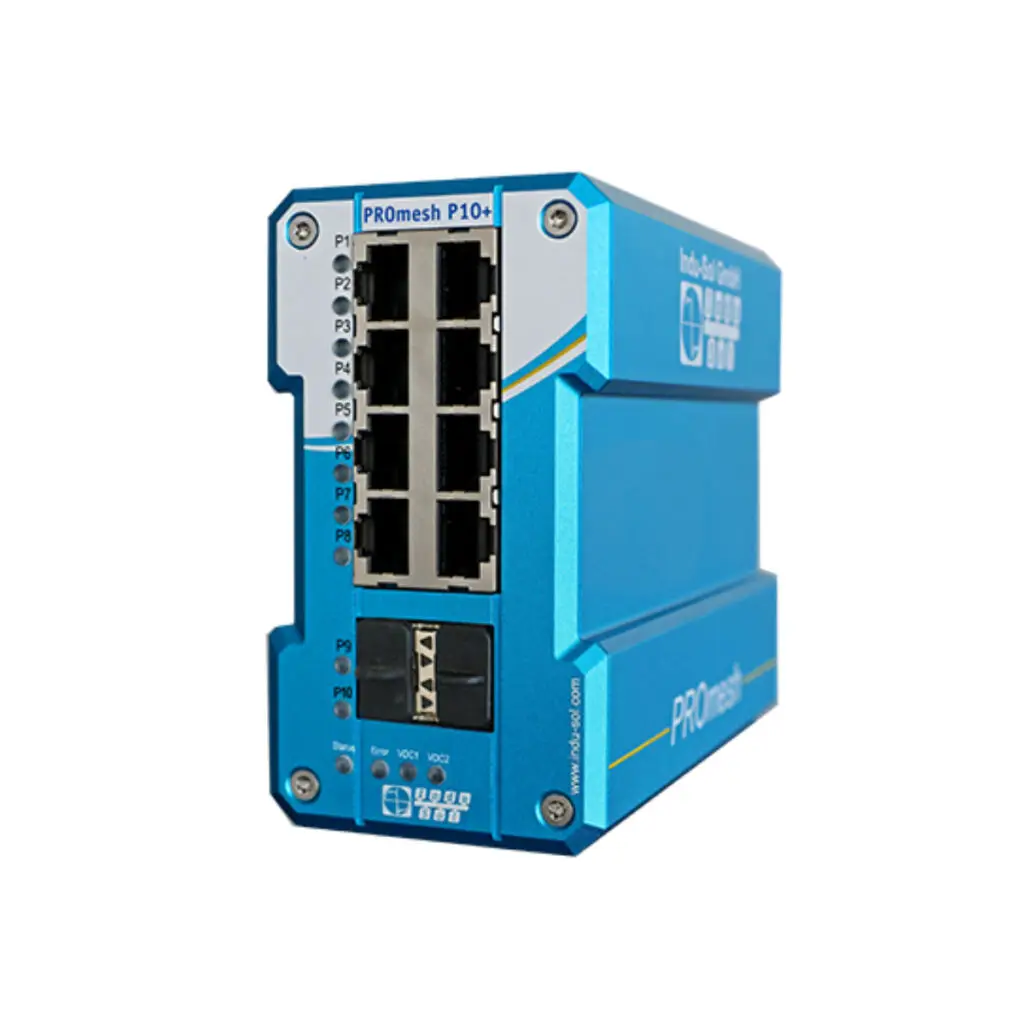

PROmesh P10+
Managed Gigabit industrial Ethernet switch with advanced diagnostics, monitoring and network security for PROFINET and EtherNet/IP applications.
Product Overview
The PROmesh P10+ is a fully managed Industrial Ethernet switch designed for high-performance PROFINET and EtherNet/IP networks in industrial automation environments. It combines high-speed data transmission with advanced network diagnostics, monitoring and security functions to help maintain reliable industrial communication.
The switch provides eight Gigabit RJ45 ports and two SFP slots supporting transmission speeds of up to 2.5 Gbit/s, allowing flexible use of copper or fibre-optic connections. Integrated line diagnostics continuously monitor connected network lines during operation, while additional monitoring functions provide information about EMC, 24 V supply, temperature, light, port statistics and network load.
Advanced network functions include MRP, RSTP and MSTP redundancy, Quality of Service and an integrated firewall with NAT routing. The PROmesh P10+ also supports PROFINET V2.4 and EtherNet/IP integration, making it suitable for demanding industrial communication and automation applications.
Key Features
- 8 × 1 Gbit/s RJ45 ports
- 2 × 2.5 Gbit/s SFP slots
- Fully managed Industrial Ethernet switch
- PROFINET V2.4 certified
- PROFINET Conformance Class B
- EtherNet/IP support
- Continuous line diagnostics during network operation
- Cable and network quality monitoring
- EMC monitoring
- 24 V supply monitoring
- Temperature monitoring
- Light monitoring
- Port statistics monitoring
- Network load monitoring
- MRP, RSTP and MSTP redundancy
- Quality of Service with 8 priority queues
- Integrated firewall
- NAT routing
- Web-based configuration and monitoring
- SD card for configuration-free device replacement
- Compact passive-cooled housing
- DIN-rail mounting
- Extended operating temperature range of -40 °C to +75 °C
- UL/CSA, CE and UKCA certifications
Technical Specifications
Product Type: Managed Industrial Ethernet / PROFINET switch
Application: PROFINET, Industrial Ethernet and EtherNet/IP networks
RJ45 Ports: 8 × 10/100/1000 Mbit/s
SFP Ports: 2 × 100 Mbit/s / 1 Gbit/s / 2.5 Gbit/s
PROFINET Standard: Conformance Class B according to V2.4
Netload Class: III
Monitoring: Cable, EMC, 24 V, temperature, light, port statistics and network load
Redundancy: MRP, RSTP, MSTP
Firewall: Yes
Routing: NAT
Quality of Service: Yes, 8 priority queues
Switching Technology: Store and Forward
Backplane Capacity: 26 Gbit/s
Throughput: 19.3 Mpps
Shared Buffer: 2 Mbit
Data Storage: SD card
Power Supply: 24 V DC, redundant
Supply Voltage Range: 12–48 V DC
Mounting: 35 mm DIN rail
Protection Rating: IP20
Housing: Anodised aluminium, passive cooling
Dimensions: 110 × 60 × 132 mm (H × W × D)
Operating Temperature: -40 °C to +75 °C
Storage Temperature: -40 °C to +75 °C
Relative Humidity: <95%, non-condensing
Certifications: UL/CSA, CE, UKCA
Article Number: 114110204
