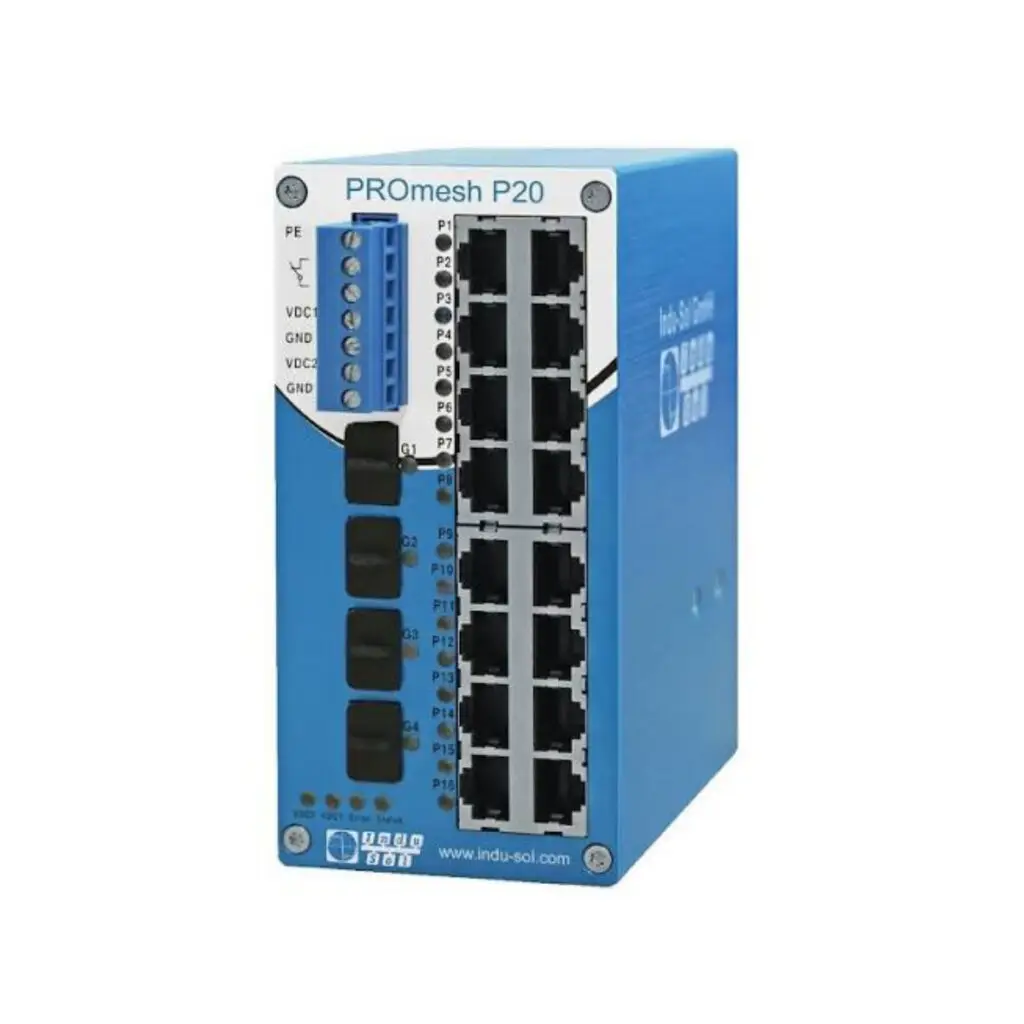

PROmesh P20
Managed industrial Ethernet switch with 16 Fast Ethernet ports, four Gigabit SFP ports, integrated diagnostics, redundancy and NAT routing for PROFINET and Industrial Ethernet networks.
Product Overview
The PROmesh P20 is a managed industrial Ethernet switch designed for reliable and high-performance communication in PROFINET and Industrial Ethernet networks. With 16 Fast Ethernet RJ45 ports and four Gigabit SFP ports, it provides flexible copper and fibre-optic connectivity for larger industrial network structures.
The switch combines managed network functionality with integrated monitoring and diagnostic capabilities. It monitors important network parameters including EMC, 24 V supply, temperature, port statistics and network load, helping engineers identify developing network problems and maintain reliable communication.
The PROmesh P20 supports PROFINET Conformance Class B and EtherNet/IP integration, while MRP, RSTP and MSTP redundancy functions support robust network architectures. Integrated NAT routing and firewall functionality also allow the switch to provide controlled communication between different network areas.
Its compact industrial housing, DIN-rail mounting, redundant power supply and extended operating temperature range make the PROmesh P20 suitable for demanding industrial automation and control cabinet applications.
Key Features
- 16 × 100 Mbit/s RJ45 ports
- 4 × 1 Gbit/s SFP ports
- Managed industrial Ethernet switch
- PROFINET Conformance Class B
- PROFINET V2.3 support
- EtherNet/IP compatibility
- EMC monitoring
- 24 V supply monitoring
- Temperature monitoring
- Port statistics monitoring
- Network load monitoring
- MRP, RSTP and MSTP redundancy
- NAT routing
- Integrated firewall functionality
- VLAN support
- Quality of Service (QoS)
- IGMP Snooping
- SNMP monitoring
- Bandwidth management
- Email and relay alerts
- Web-based configuration and management
- GSDML support for PROFINET integration
- EDS support for EtherNet/IP integration
- SD card for configuration-free device replacement
- Redundant power supply
- DIN-rail mounting
- Robust metal housing
- Extended operating temperature range
Technical Specifications
Product Type: Managed Industrial Ethernet / PROFINET switch
Application: PROFINET, Industrial Ethernet and EtherNet/IP networks
RJ45 Ports: 16 × 10/100 Mbit/s
SFP Ports: 4 × 1000Base-X SFP
PROFINET Standard: Conformance Class B according to V2.3
Netload Class: III
Monitoring: EMC, 24 V, temperature, port statistics and network load
Redundancy: MRP, RSTP, MSTP
Routing: NAT
Firewall: Yes
VLAN: Supported
Quality of Service: Supported
IGMP Snooping: Supported
SNMP: Supported
Switching Technology: Store and Forward
Backplane Capacity: 12.8 Gbit/s
Throughput: 8.5 Mpps
Shared Buffer: 4 Mbit
Power Supply: 24 V DC, redundant
Supply Voltage Range: 12–48 V DC
Mounting: DIN rail
Protection Rating: IP30
Housing: Industrial metal housing
Dimensions: 138 × 68 × 130 mm (H × W × D)
Operating Temperature: -40 °C to +75 °C
Storage Temperature: -40 °C to +85 °C
Certifications: UL/CSA, CE, UKCA
Article Number: 114110022
