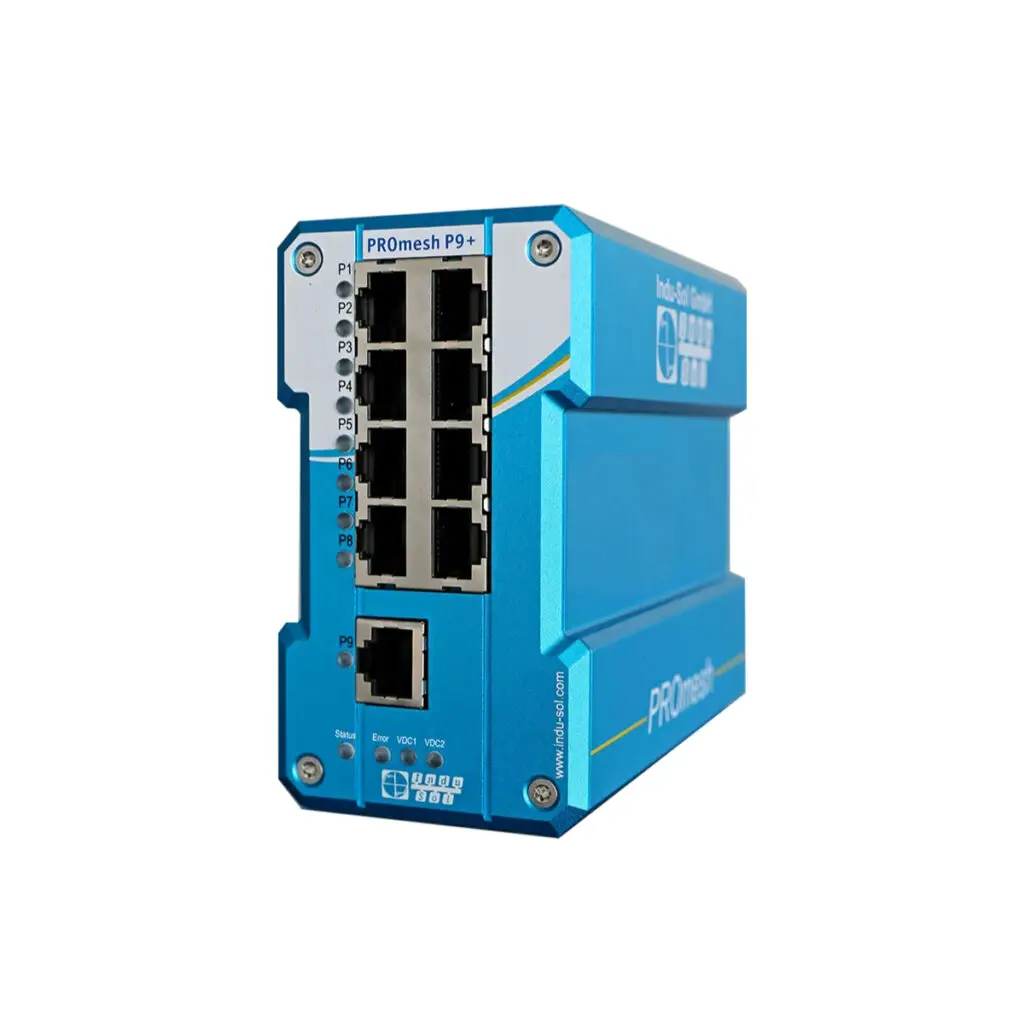

PROmesh P9+
Managed Gigabit industrial Ethernet switch with nine RJ45 ports, integrated network diagnostics and monitoring for PROFINET and Industrial Ethernet applications.
Product Overview
The PROmesh P9+ is a managed industrial Ethernet switch designed for high-performance PROFINET and Industrial Ethernet networks. With nine Gigabit RJ45 ports and an 18 Gbit/s backplane capacity, it provides reliable, high-speed connectivity for industrial automation applications.
The switch combines managed network functionality with integrated diagnostic and monitoring capabilities. It continuously monitors important network parameters including data-line condition, EMC, 24 V supply, temperature, port statistics and network load, helping engineers identify developing network problems before they result in communication failures or production interruptions.
The PROmesh P9+ supports PROFINET Conformance Class B and Netload Class III, as well as EtherNet/IP integration. MRP, RSTP and MSTP redundancy functions support reliable network architectures, while the integrated web interface provides convenient configuration, monitoring and network management.
Its compact metal housing, DIN-rail mounting and extended operating temperature range make the PROmesh P9+ suitable for demanding industrial environments.
Key Features
- 9 × 1 Gbit/s RJ45 ports
- Managed industrial Ethernet switch
- PROFINET Conformance Class B
- PROFINET V2.4 support
- Netload Class III
- EtherNet/IP support
- Integrated line diagnostics
- EMC monitoring
- 24 V supply monitoring
- Temperature monitoring
- Port statistics monitoring
- Network load monitoring
- MRP, RSTP and MSTP redundancy
- Quality of Service (QoS)
- Integrated firewall functionality
- Web-based configuration and network management
- SD card for fast device replacement
- Compact passive-cooled metal housing
- DIN-rail mounting
- Extended operating temperature range
- UL/CSA, CE and UKCA certifications
Technical Specifications
Product Type: Managed industrial Ethernet switch with integrated diagnostics
Application: PROFINET and Industrial Ethernet networks
RJ45 Ports: 9 × 10/100/1000 Mbit/s
PROFINET Standard: Conformance Class B according to V2.4
Netload Class: III
EtherNet/IP: Supported
Monitoring: Data lines, EMC, 24 V supply, temperature, port statistics and network load
Redundancy: MRP, RSTP, MSTP
Firewall: Yes
Routing: Yes
Switching Technology: Store and Forward
MAC Address Table: 16K
Shared Buffer: 2 Mbit
Backplane Capacity: 18 Gbit/s
Throughput: 13.4 Mpps
Data Storage: SD card
Power Supply: 24 V DC, redundant
Supply Voltage Range: 12–48 V DC
Mounting: 35 mm DIN rail
Protection Rating: IP20
Housing: Anodised aluminium, compact passive cooling
Dimensions: 110 × 60 × 131 mm (H × W × D)
Operating Temperature: -40 °C to +75 °C
Storage Temperature: -40 °C to +75 °C
Relative Humidity: <95%, non-condensing
Certifications: UL/CSA, CE, UKCA
Article Number: 114110194
