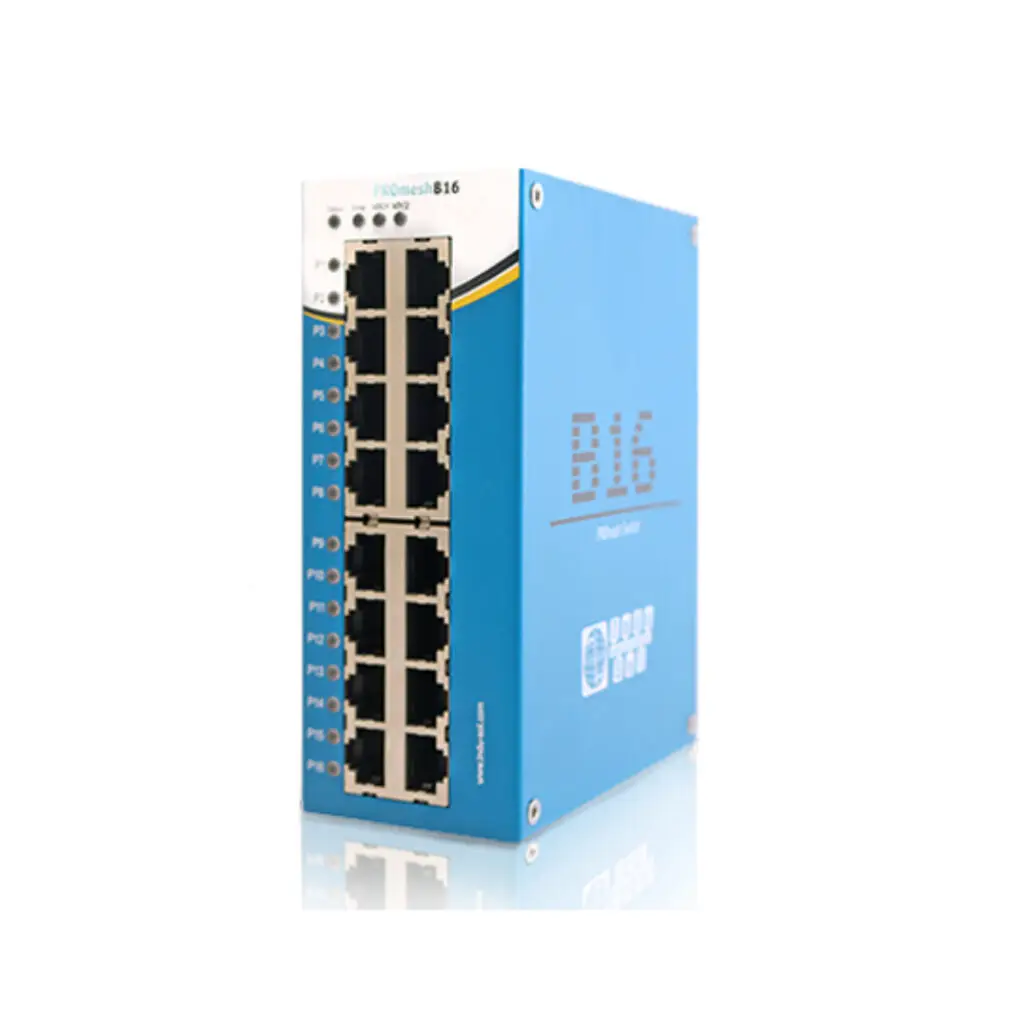

PROmesh B16
High-performance managed industrial Ethernet switch with 16 RJ45 ports, PROFINET and EtherNet/IP support, integrated diagnostics and advanced network management functions.
Product Overview
The PROmesh B16 is a managed industrial Ethernet switch with 16 RJ45 ports, designed for high-performance communication in PROFINET and EtherNet/IP industrial networks.
With 16 × 100 Mbit/s RJ45 ports, a 13.4 Gbit/s backplane capacity and 3.7 Mpps throughput, the PROmesh B16 provides reliable connectivity for larger industrial network structures. It supports PROFINET Conformance Class B and Netload Class III, making it suitable for demanding automation applications.
Integrated monitoring functions provide visibility of important network parameters including 24 V supply, temperature, port statistics and network load. Redundancy functions such as MRP and RSTP support network availability, while firewall and routing functionality provide additional network management and security capabilities.
The PROmesh B16 combines managed network functionality with a compact industrial design and DIN-rail mounting, making it suitable for control cabinets and industrial automation installations.
Key Features
- 16 × 100 Mbit/s RJ45 ports
- Managed industrial Ethernet switch
- Designed for PROFINET and EtherNet/IP networks
- PROFINET Conformance Class B
- Netload Class III
- 13.4 Gbit/s backplane capacity
- 3.7 Mpps throughput
- Monitoring of 24 V supply
- Temperature monitoring
- Port statistics monitoring
- Network load monitoring
- MRP and RSTP redundancy
- Integrated firewall functionality
- Routing functionality
- Quality of Service (QoS) prioritisation
- Web-based configuration and management
- GSDML support for PROFINET integration
- EDS support for EtherNet/IP integration
- E-Plan engineering support
- Compact metal housing
- Passive cooling
- DIN-rail mounting
- Redundant power supply
- Suitable for larger industrial network structures
- CE, UKCA, UL and CSA certifications
Technical Specifications
Product Type: Managed industrial Ethernet switch
Application: PROFINET and EtherNet/IP networks
RJ45 Ports: 16 × 10/100 Mbit/s
PROFINET Standard: Conformance Class B according to V2.4
Netload Class: III
Switching Technology: Store and Forward
Backplane Capacity: 13.4 Gbit/s
Throughput: 3.7 Mpps
MAC Address Table: 16K
Shared Packet Buffer: 2 Mbit
Monitoring: 24 V supply, temperature, port statistics and network load
Redundancy: MRP, RSTP
Firewall: Yes
Routing: Yes
Quality of Service: Yes
Power Supply: 24 V DC, redundant
Supply Voltage Range: 12–36 V DC
Mounting: 35 mm DIN rail
Protection Rating: IP20
Housing: Compact metal housing with passive cooling
Dimensions: 138 × 53 × 110 mm (H × W × D)
Operating Temperature: -10 °C to +60 °C
Storage Temperature: -10 °C to +60 °C
Relative Humidity: <95%, non-condensing
Certifications: CE, UKCA, UL, CSA
Article Number: 114110510
