MULTIrep X5
PROFIBUS repeater and hub for up to five galvanically isolated segments, with signal regeneration, interference suppression and integrated diagnostics.
Product Overview

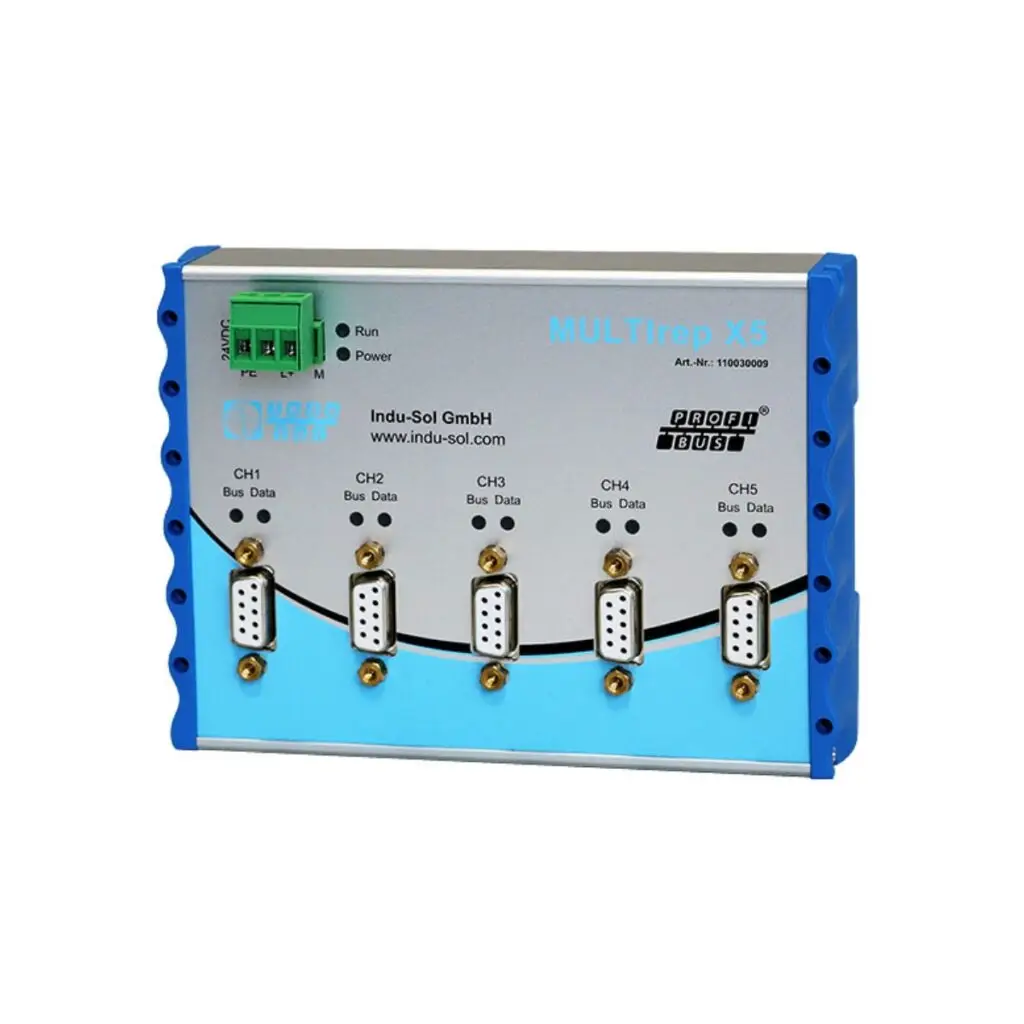

The MULTIrep X5 is a multi-channel PROFIBUS repeater designed to create a robust, flexible and stable PROFIBUS network structure. It divides a PROFIBUS network into up to five galvanically isolated segments while regenerating the PROFIBUS voltage signal to the required standard level.
The integrated interference suppression and diagnostic functions help maintain reliable data communication and simplify troubleshooting. Logical and physical abnormalities in PROFIBUS traffic are identified and indicated for the affected segment, allowing faults to be isolated and diagnosed more efficiently.
The MULTIrep X5 can be used to create star-shaped PROFIBUS topologies, extend network structures and isolate sensitive or problematic areas of a network. Its robust 9-pin D-Sub connections also provide convenient access for PROFIBUS measurement points.
Key Features
• Supports up to five PROFIBUS segments
• Creates galvanically isolated network segments
• Regenerates and stabilises the PROFIBUS signal
• Supports robust star-shaped PROFIBUS topologies
• Integrated interference suppression
• Automatically isolates faults to the affected segment
• Detects logical and physical abnormalities in PROFIBUS traffic
• Continuously monitors PROFIBUS data traffic
• Segment health indicated through integrated status LEDs
• Simplifies troubleshooting through clear segment separation
• Supports network expansion up to 126 PROFIBUS participants
• Up to 32 participants permitted per segment
• Robust 9-pin D-Sub PROFIBUS connections
• Provides convenient access for PROFIBUS measuring points
• Suitable for continuous industrial operation
Technical Specifications
Product Type: PROFIBUS repeater / hub
Model: MULTIrep X5
Number of Segments: Up to 5
Galvanic Isolation: Yes, between individual segments
PROFIBUS Connection: 9-pin Sub-D
Number of PROFIBUS Connections: 5
Network Structure: Line and star topology
Maximum Network Participants: 126
Maximum Participants per Segment: 32 (31 + repeater)
Signal Regeneration: Yes
Signal Stabilisation: Yes
Integrated Diagnostics: Yes
Diagnostic Indication: LED status indication for individual segments
Interference Suppression: Automatic
Fault Isolation: Automatic isolation of the affected segment
Measurement Access: D-Sub connections can provide access for PROFIBUS measuring points
Power Supply: 24 V DC ±20%
Current Consumption: 0.3 A
Transmission Rate: 9.6 kbit/s to 12 Mbit/s
PROFIBUS Types: DP, DP-V1, FMS, MPI
Mounting: 35 mm DIN rail
Dimensions (H × W × D): 105 × 145 × 40 mm
Protection Class: IP20
Operating Temperature: +5 °C to +55 °C
Storage Temperature: -20 °C to +70 °C
Article Number: 110030009
