MULTIrep X7
PROFIBUS repeater and hub for up to seven galvanically isolated segments, with signal regeneration, interference suppression and integrated diagnostics.
Product Overview

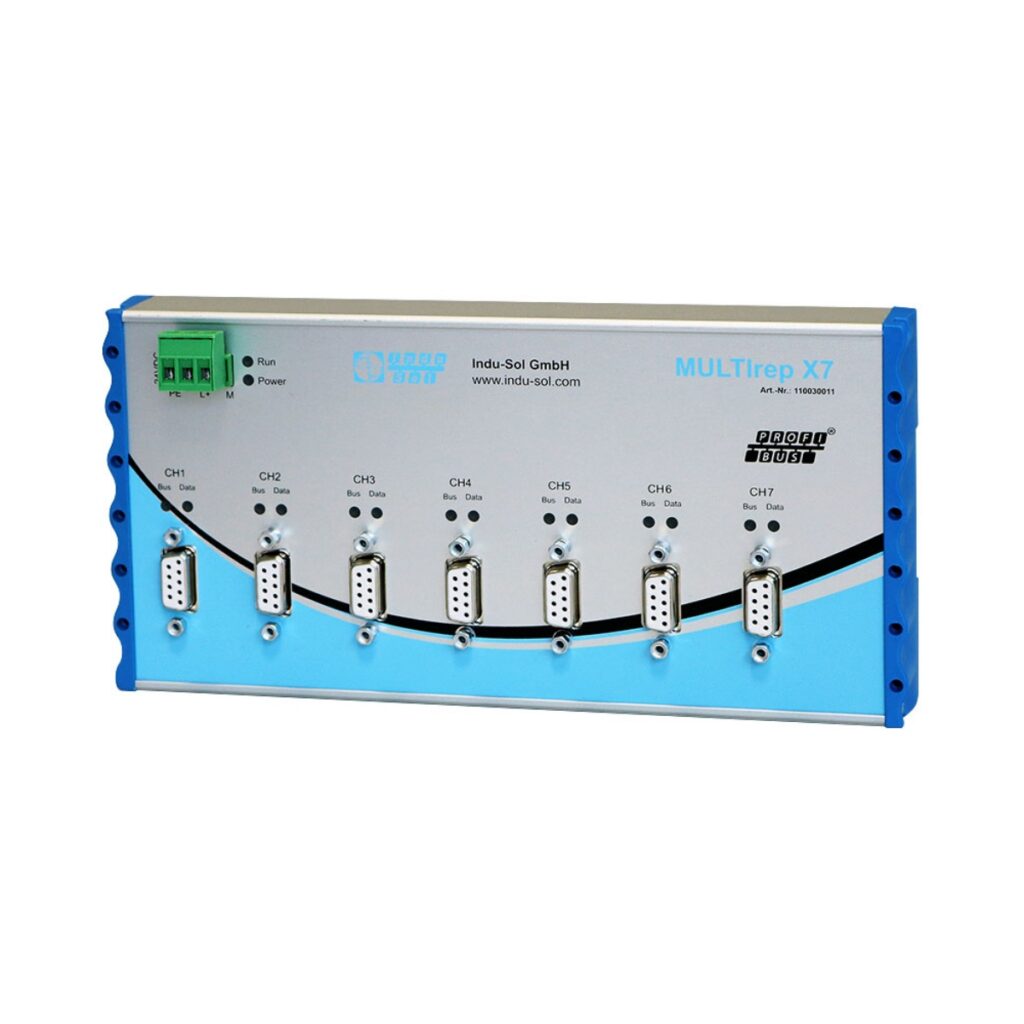

The MULTIrep X7 is a multi-channel PROFIBUS repeater and hub designed to create robust, flexible and stable PROFIBUS network structures. It divides a PROFIBUS network into up to seven galvanically isolated segments while regenerating the PROFIBUS signal to the required standard level.
The integrated interference suppression and diagnostic functions help maintain reliable communication and simplify troubleshooting. Logical and physical abnormalities in PROFIBUS data traffic are detected and indicated for the affected segment, allowing faults to be isolated and investigated without unnecessarily affecting the rest of the network.
The MULTIrep X7 is particularly suited to creating star-shaped PROFIBUS topologies and isolating sensitive or problematic areas of a network. Each segment can be monitored independently, while the 9-pin Sub-D connections provide convenient access for PROFIBUS diagnostic measurements.
Key Features
• Supports up to seven PROFIBUS segments
• Creates galvanically isolated network segments
• Regenerates and stabilises the PROFIBUS signal
• Supports robust star-shaped PROFIBUS topologies
• Integrated interference suppression
• Automatically isolates faults to the affected segment
• Detects logical and physical abnormalities in PROFIBUS data traffic
• Continuously monitors PROFIBUS telegram traffic
• Segment health indicated through integrated status LEDs
• Simplifies troubleshooting through clear segment separation
• Supports network expansion up to 126 PROFIBUS participants
• Up to 32 participants permitted per segment
• 9-pin Sub-D PROFIBUS connections
• Connections can provide access for PROFIBUS diagnostic measurements
• Suitable for continuous industrial operation
Technical Specifications
Product Type: PROFIBUS repeater / hub
Model: MULTIrep X7
Number of Segments: Up to 7
Galvanic Isolation: Yes, between individual segments
PROFIBUS Connection: 9-pin Sub-D
Number of PROFIBUS Connections: 7
Network Structure: Line and star topology
Maximum Network Participants: 126
Maximum Participants per Segment: 32 (31 + repeater)
Signal Regeneration: Yes
Signal Stabilisation: Yes
Integrated Diagnostics: Yes
Diagnostic Indication: LED status indication for individual segments
Interference Suppression: Automatic
Fault Isolation: Automatic isolation of the affected segment
Measurement Access: Sub-D connections can provide access for PROFIBUS measuring points
Power Supply: 24 V DC ±20%
Current Consumption: 0.3 A
Transmission Rate: 9.6 kbit/s to 12 Mbit/s
PROFIBUS Types: DP, DP-V1, FMS, MPI
Mounting: 35 mm DIN rail
Dimensions (H × W × D): 105 × 212 × 40 mm
Protection Class: IP20
Operating Temperature: +5 °C to +55 °C
Storage Temperature: -20 °C to +70 °C
Article Number: 110030011
