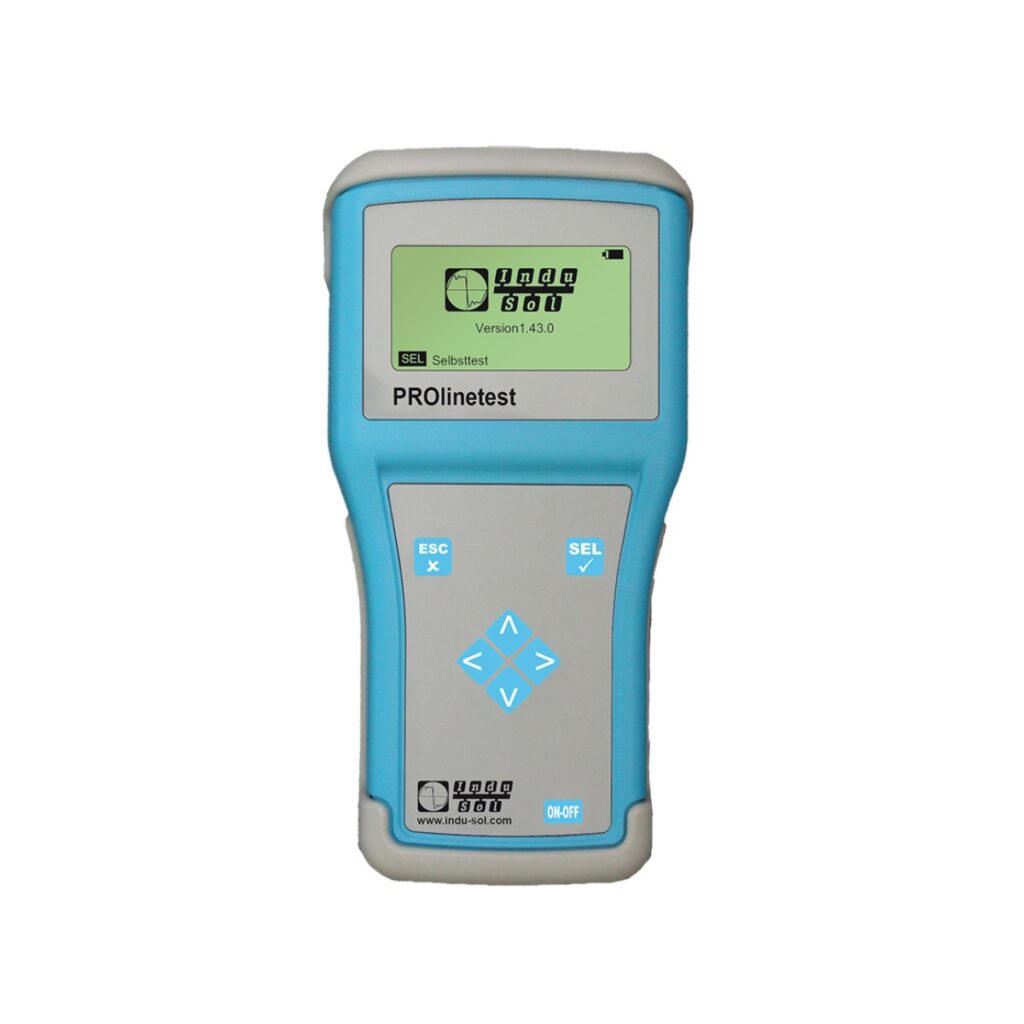

PROlinetest
Portable PROFINET and Industrial Ethernet cable tester for detecting wiring faults, measuring cable lengths and locating installation problems up to 150 metres.
Product Overview
The PROlinetest is a portable cable tester designed for the installation and troubleshooting of PROFINET and Industrial Ethernet networks using copper cabling. It performs physical offline analysis of network cables, checking the correct wiring of conductors and pairs while detecting interruptions, short circuits, crossed wires and excessive cable lengths.
Using an integrated configurable cable database and TDR (Time Domain Reflectometry) measurement, the PROlinetest can measure cable lengths up to 150 metres and locate interruptions or short circuits with an indication of the distance to the fault. The device also includes a Power over Ethernet load test and supports common wiring profiles such as PROFINET, T-568A and T-568B.
Key Features
• Detects wiring and connection errors
• Checks wires and wire pairs for continuity
• Detects interruptions, short circuits and crossed wires
• Measures cable lengths using TDR technology
• Measures cable lengths up to 150 m
• Indicates the distance to interruptions and short circuits
• Integrated configurable cable database
• Includes predefined PROFINET wiring profiles
• Supports T-568A and T-568B wiring profiles
• Graphical display with backlighting
• Power over Ethernet load test according to IEEE 802.3af
• Portable, battery-powered design
• Suitable for PROFINET and Industrial Ethernet copper cabling
Technical Specifications
Product Type: PROFINET and Industrial Ethernet cable tester
Application: Physical offline analysis of copper network cabling
Cable Measurement: TDR (Time Domain Reflectometry)
Maximum Cable Length Measurement: 150 m
Fault Detection: Interruptions, short circuits, crossed wires and wiring errors
PoE Testing: Power over Ethernet load test according to IEEE 802.3af
Overvoltage Protection: Up to 100 V
Cable Profiles: PROFINET, T-568A and T-568B
Main Unit Housing: Impact-resistant and weather-resistant ABS
Main Unit Dimensions: 195 × 100/78 × 45 mm (H × W × D)
Main Unit Weight: 380 g excluding batteries
Battery: 4 × 1.5 V Alkaline batteries
Battery Life: Approximately 40 hours
Remote Unit Dimensions: 61 × 41 × 26 mm (H × W × D)
Remote Unit Weight: 30 g
Operating Temperature: -5 °C to +50 °C
Storage Temperature: -25 °C to +75 °C
Humidity: 90% relative humidity, non-condensing
Article Number: 112010010
