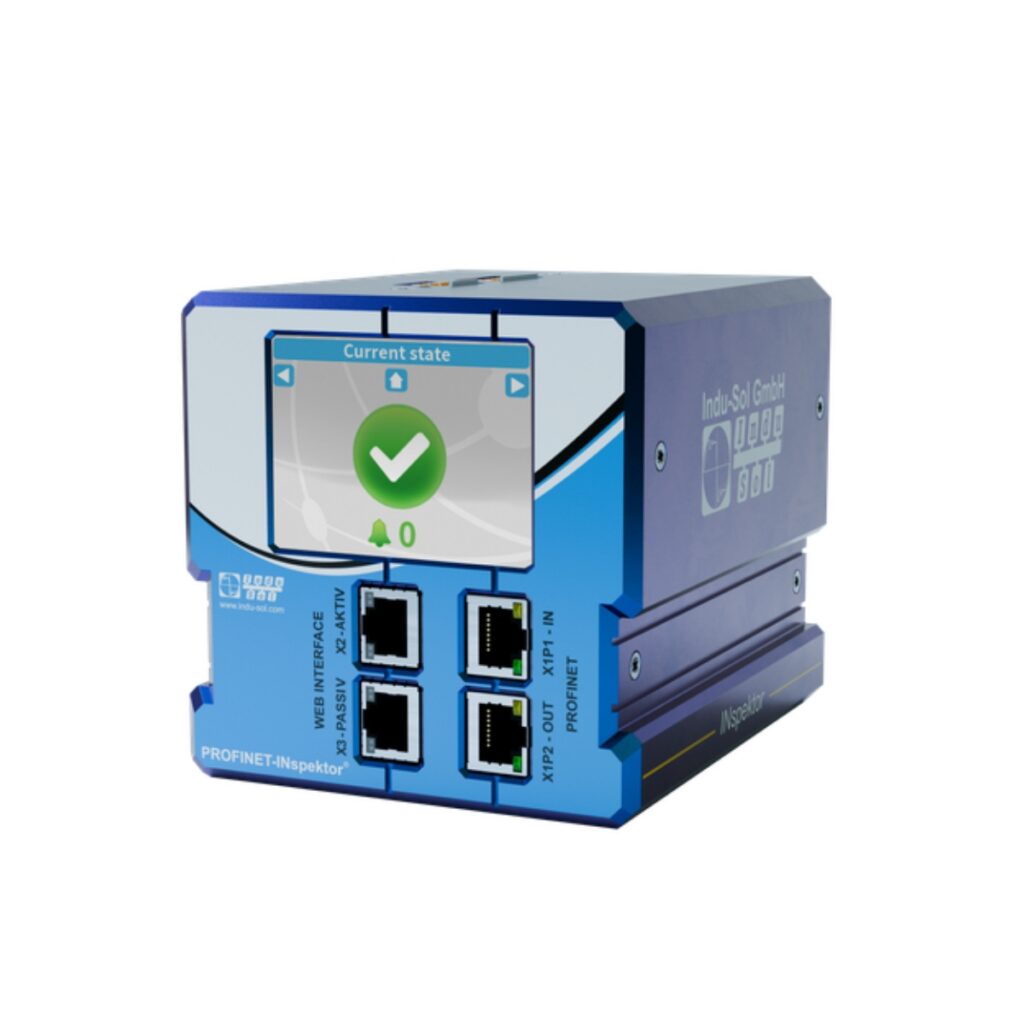

PROFINET-INspektor® NT
Intelligent passive PROFINET analysis and monitoring device for continuous network diagnostics, topology monitoring and early detection of communication abnormalities.
Product Overview
The PROFINET-INspektor® NT is an intelligent, passive analysis device for continuous diagnosis, monitoring and validation of PROFINET networks. It records relevant network events and communication data during operation, providing detailed insight into network load, data throughput, telegram jitter, telegram gaps, device diagnostics and network stability.
The integrated web interface provides a live view of the network topology and diagnostic information, allowing potential problems and affected network segments to be identified quickly. The PROFINET-INspektor® NT can be used for network acceptance testing, commissioning, maintenance and continuous condition monitoring, helping operators identify abnormalities before they lead to network failures.
Key Features
- Passive, continuous monitoring of PROFINET communication
- Records network load, data throughput, telegram gaps and telegram jitter
- Live PROFINET topology visualisation with device and diagnostic information
- Detects network devices and provides asset information
- Monitors status-relevant statistics from manageable PROFINET switches
- Customisable thresholds and alarm management
- Pre-configured alarm thresholds based on PROFINET guidelines
- Supports MQTT, email, relay contact, OPC UA and REST API integration
- Detects new or unknown devices on the network
- Identifies unauthorised programming or controller manipulation
- Integrated web interface accessible through a standard web browser
- Suitable for acceptance testing, commissioning, maintenance and permanent network monitoring
Technical Specifications
Product Type: Passive PROFINET analysis and monitoring device
Application: PROFINET network diagnosis, monitoring and validation
Network Monitoring: Continuous monitoring of logical PROFINET telegram traffic
Analysis Parameters: Network load, data throughput, refresh rate, telegram gaps, telegram jitter, repeat telegrams, error telegrams, device diagnostics and device failures
Topology: Automatic PROFINET topology detection and live topology visualisation
Asset Discovery: Detection of network devices including order number, software version and hardware version
Switch Diagnostics: Status-relevant port statistics for manageable PROFINET switches
Alarm Management: Customisable thresholds with pre-configured thresholds based on PROFINET guidelines
Alarm Interfaces: MQTT, email, relay contact
Additional Interfaces: OPC UA, MQTT and REST API
Web Interface: Integrated web server accessible via standard web browser
Security Monitoring: Detection of new or unknown devices and unauthorised programming or controller manipulation
Installation:Permanent integration into the PROFINET network
Article Number: 124030100
