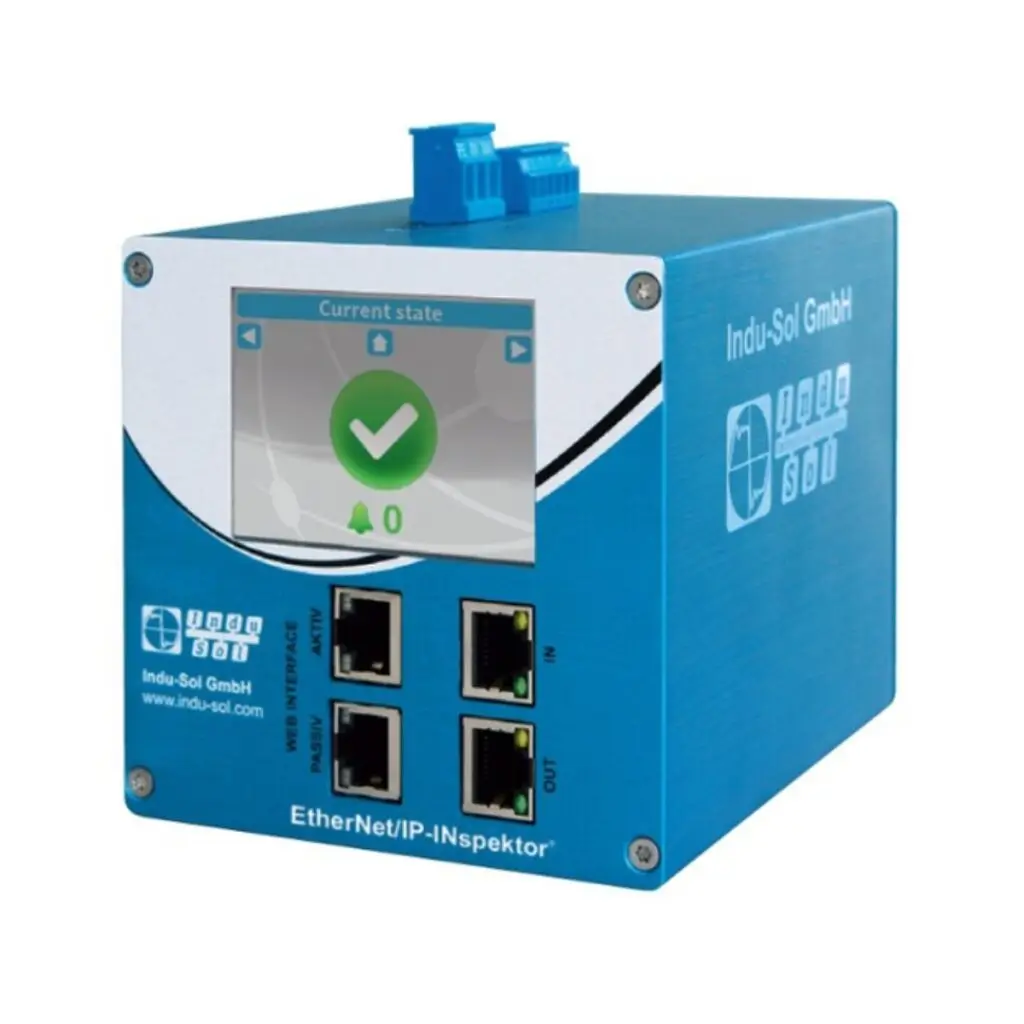

EtherNet/IP-INspektor®
Intelligent passive diagnostic and monitoring device for analysing EtherNet/IP networks, detecting communication abnormalities and supporting network acceptance and preventative maintenance.
Product Overview
The EtherNet/IP-INspektor® is an intelligent, passive diagnostic and monitoring device for analysing EtherNet/IP and Ethernet networks during operation. It continuously evaluates network communication and records important quality parameters, helping engineers identify developing communication problems and network abnormalities before they result in production interruptions.
The device analyses parameters such as network load, data throughput, update times, telegram gaps, telegram jitter, repeated telegrams, error frames, device diagnostics and device failures. Events can be stored and reviewed directly on the device or through its integrated web interface.
The EtherNet/IP-INspektor® can be used for network acceptance, commissioning, maintenance and continuous condition monitoring. Its passive measurement approach allows network communication to be monitored without actively interfering with the communication process.
Key Features
- Passive, feedback-free EtherNet/IP network diagnosis
- Continuous monitoring during normal network operation
- Analysis of network load and data throughput
- Monitoring of update times and telegram jitter
- Detection of telegram gaps and repeated telegrams
- Detection of error frames
- Detection of device diagnostics and device failures
- Direct display of network status and detected errors
- Traffic-light-style evaluation for quick assessment
- Integrated web server for browser-based network analysis
- Alarm notifications through potential-free contact
- Detection and notification of unknown devices
- Passive ring detection
- Acceptance report mode for rapid network assessment
- Storage of network events for later analysis
- Suitable for commissioning, inspection, maintenance and service
- Designed for temporary or permanent network monitoring
Technical Specifications
Product Type: EtherNet/IP diagnostic and monitoring device
Application: EtherNet/IP network acceptance, diagnostics and condition monitoring
Network: EtherNet/IP and Ethernet
Measurement Type: Passive, feedback-free network analysis
Monitored Parameters: Network load, data throughput, update time, telegram gaps, telegram jitter, telegram repetitions, error frames, device diagnostics and device failures
Network Status Display: Integrated display with traffic-light evaluation
Web Interface: Integrated web server
Web Interface Ports: 2 × 10/100/1000Base-T RJ45
EtherNet/IP Network Ports: 2 × 10/100Base-T RJ45
Power Supply: +24 V DC
Power Supply Tolerance: ±10%
Maximum Power Consumption: 350 mA
Maximum Power Dissipation: 8.5 W
Mounting: TS35 DIN rail according to EN 50022
Protection Class: IP20
Dimensions: 123 × 105 × 129 mm (H × W × D), including DIN-rail mounting and connector terminals
Weight: Approximately 0.84 kg
Operating Temperature: +5 °C to +55 °C
Storage Temperature: -15 °C to +75 °C
Humidity: 10–90%, non-condensing
Article Number: 124090002
