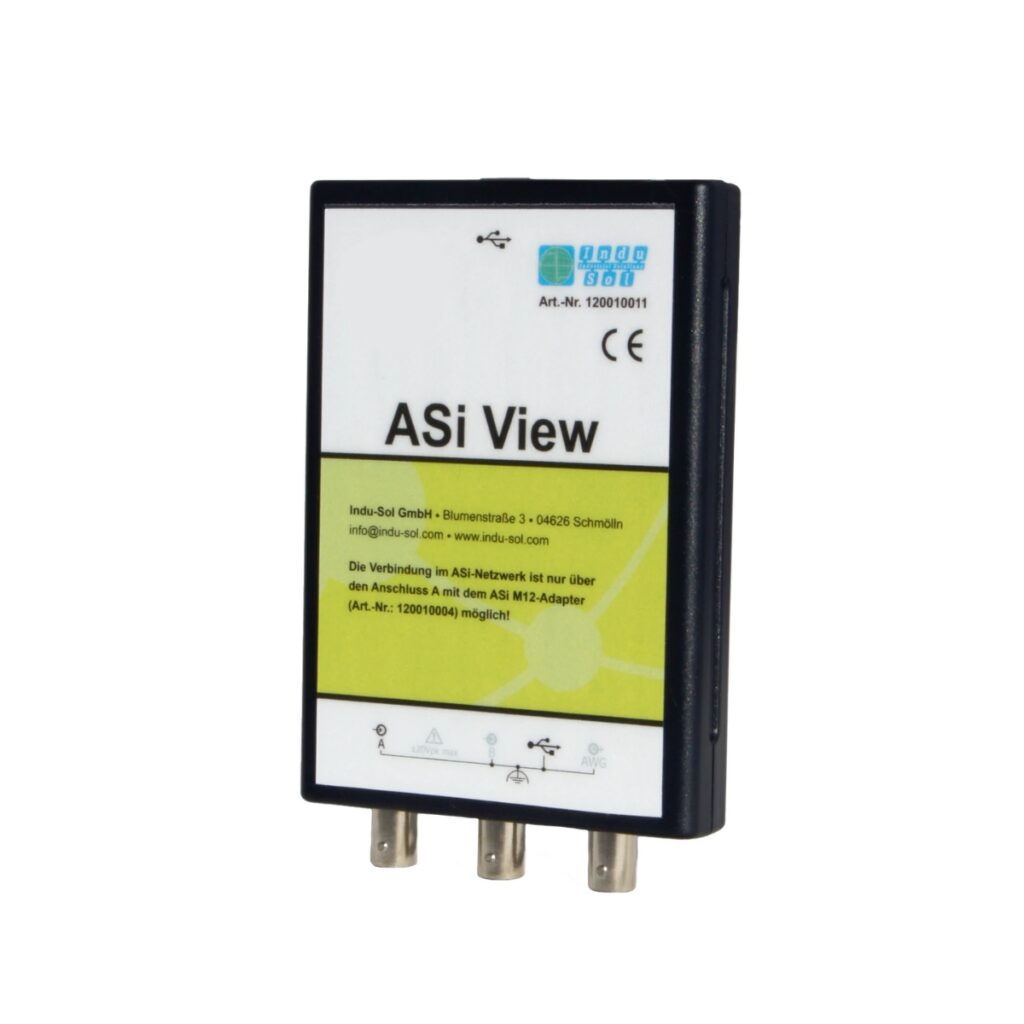

ASi View
Mobile AS-Interface diagnostic tool for analysing physical signal quality, telegram traffic and communication problems during live network operation.
Product Overview
The ASi View is a mobile diagnostic and measurement device for analysing the physical and logical communication quality of AS-Interface (ASi) networks during normal operation. It provides a quick overview of network condition and allows technicians to identify communication problems, signal-quality issues and potential sources of interference.
The device can evaluate signal quality for individual ASi stations and display the results using an easy-to-understand bar graph and traffic-light-style assessment. For more detailed troubleshooting, the integrated oscilloscope function can be used to analyse signal shapes, reflections, EMC interference and eye diagrams.
ASi View also analyses telegram traffic, providing information about communication errors and the response behaviour of individual stations. It connects to the ASi network using the supplied measurement accessories and communicates with a PC via USB. The device is suitable for commissioning, troubleshooting, maintenance and service of ASi networks.
Key Features
- Online ASi network analysis while the system is running
- Evaluation of physical signal quality for individual stations
- Logical analysis of ASi telegram traffic
- Easy-to-read bar graph and traffic-light-style network assessment
- Integrated oscilloscope function for detailed signal analysis
- Eye-diagram analysis for evaluating signal quality and noise behaviour
- Detection of EMC interference, signal-shape problems and reflections
- Analysis of station-specific telegram errors
- Identification of failed calls and responses
- Measurement of pause times between master calls and slave responses
- Automatic measurement mode for quick network assessment
- Expert mode for detailed troubleshooting and analysis
- USB connection to PC or notebook
- Supplied with ASi measuring adapter and M12 adapter accessories
- Designed for commissioning, troubleshooting, maintenance and service
- Powered via USB connection when connected to a PC
Technical Specifications
Product Type: AS-Interface diagnostic and measurement tool
Application: Physical and logical ASi network analysis
Network: AS-Interface (ASi)
Measurement: Online measurement during network operation
Physical Analysis: Signal quality, signal shape and communication quality
Logical Analysis: Telegram traffic and station-specific communication errors
Oscilloscope: Integrated
Eye Diagram: Supported
Voltage Measurement: Maximum 40 Vpp
Frequency: AS-Interface frequency spectrum
Sampling Rate: 2.5 MHz
Recording Time: Approximately 100 ms per recorded data block
Power Supply: Via USB connection from PC/notebook
Maximum Current: 420 mA
Communication Interface: USB 2.0
Protection Rating: IP20
Operating Temperature: 0 °C to +45 °C
Humidity: Maximum 80%, non-condensing
Measurement Accuracy: Relative measurement error < ±3% under calibrated conditions
Measurement Connection: ASi measuring adapter / M12 adapter
Article Number: 120010011
